Plotting maps

As test data we use the CMIP6 Scenarios.

julia
using Zarr, YAXArrays, Dates
using DimensionalData
using GLMakie, GeoMakie
using GLMakie.GeometryBasics

store ="gs://cmip6/CMIP6/ScenarioMIP/DKRZ/MPI-ESM1-2-HR/ssp585/r1i1p1f1/3hr/tas/gn/v20190710/"
"gs://cmip6/CMIP6/ScenarioMIP/DKRZ/MPI-ESM1-2-HR/ssp585/r1i1p1f1/3hr/tas/gn/v20190710/"
julia
julia> g = open_dataset(zopen(store, consolidated=true))
YAXArray Dataset
Shared Axes:
None
Variables:
height

Variables with additional axes:
  Additional Axes:
  (lon Sampled{Float64} 0.0:0.9375:359.0625 ForwardOrdered Regular Points,
lat Sampled{Float64} [-89.28422753251364, -88.35700351866494, …, 88.35700351866494, 89.28422753251364] ForwardOrdered Irregular Points,
Ti  Sampled{DateTime} [2015-01-01T03:00:00, …, 2101-01-01T00:00:00] ForwardOrdered Irregular Points)
  Variables:
  tas

Properties: Dict{String, Any}("initialization_index" => 1, "realm" => "atmos", "variable_id" => "tas", "external_variables" => "areacella", "branch_time_in_child" => 60265.0, "data_specs_version" => "01.00.30", "history" => "2019-07-21T06:26:13Z ; CMOR rewrote data to be consistent with CMIP6, CF-1.7 CMIP-6.2 and CF standards.", "forcing_index" => 1, "parent_variant_label" => "r1i1p1f1", "table_id" => "3hr"…)
julia
julia> c = g["tas"];

Subset, first time step

julia
julia> ct1_slice = c[Ti = Near(Date("2015-01-01"))];

use lookup to get axis values

julia
lon = lookup(ct1_slice, :lon)
lat = lookup(ct1_slice, :lat)
data = ct1_slice.data[:,:];

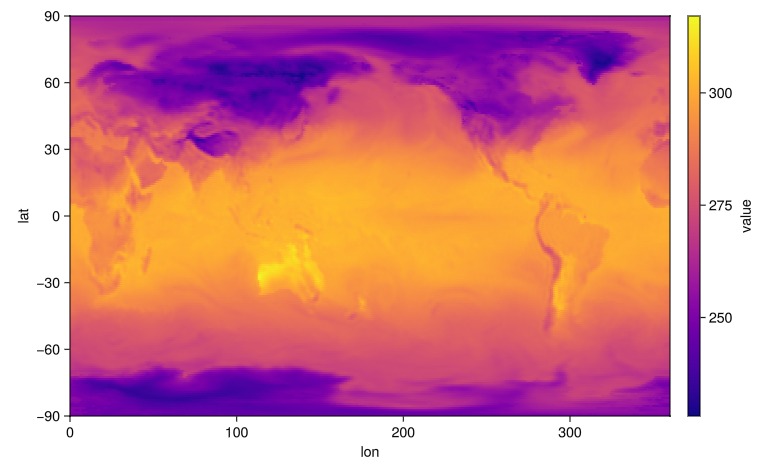

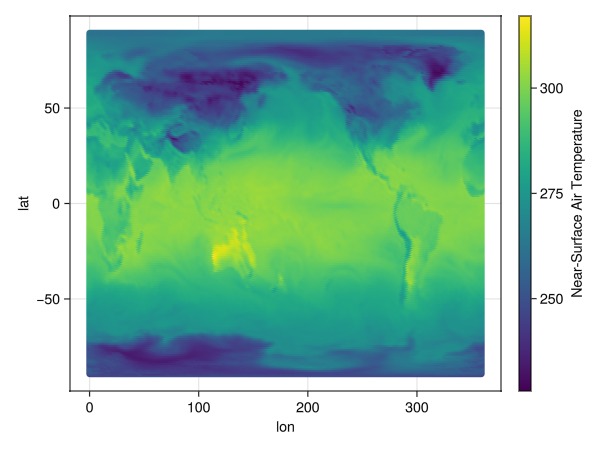

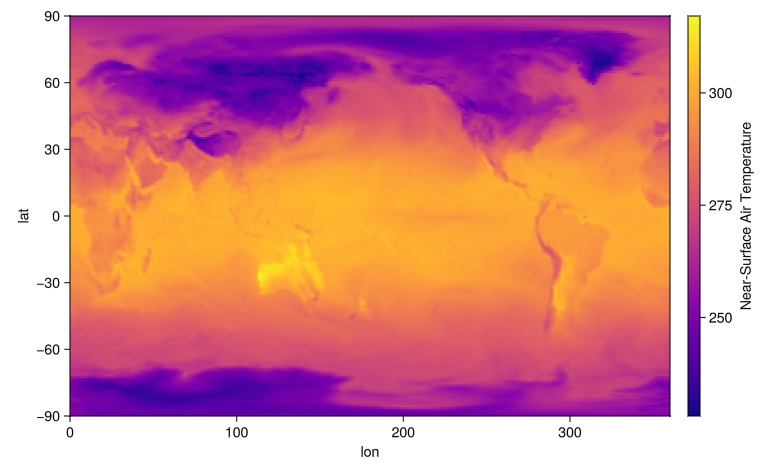

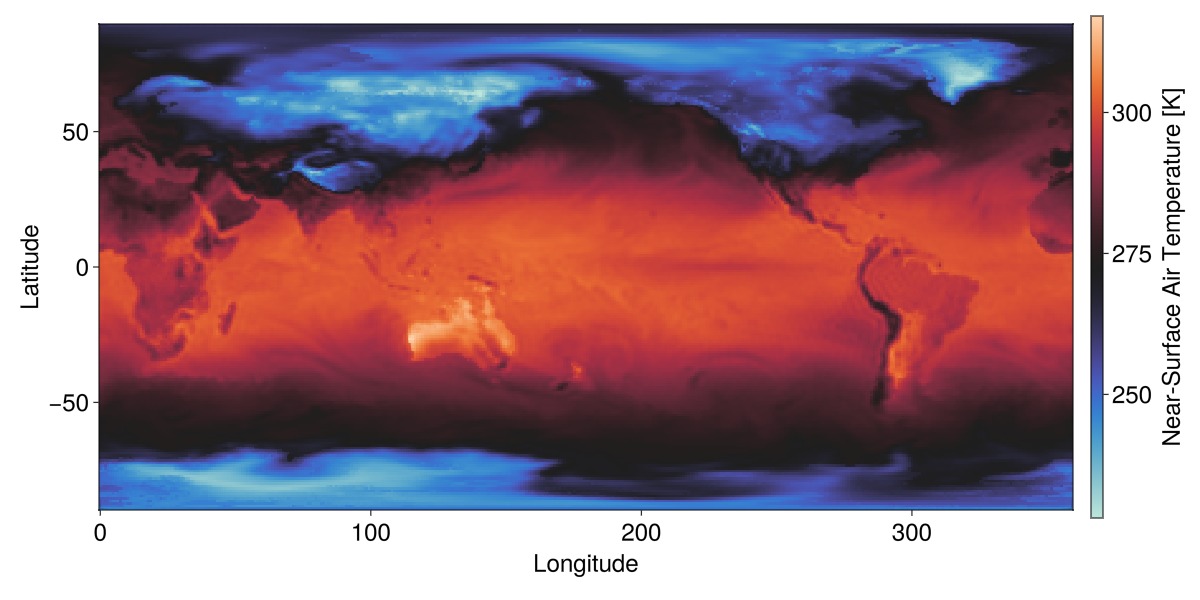

Heatmap plot

julia
GLMakie.activate!()

fig, ax, plt = heatmap(ct1_slice; colormap = :seaborn_icefire_gradient,
    axis = (; aspect=DataAspect()),
    figure = (; size = (1200,600), fontsize=24))
fig

Wintri Projection

Some transformations

julia
δlon = (lon[2]-lon[1])/2
nlon = lon .- 180 .+ δlon
ndata = circshift(data, (192,1))

and add Coastlines with GeoMakie.coastlines(),

julia
fig = Figure(;size=(1200,600))
ax = GeoAxis(fig[1,1])
surface!(ax, nlon, lat, ndata; colormap = :seaborn_icefire_gradient, shading=false)
cl=lines!(ax, GeoMakie.coastlines(), color = :white, linewidth=0.85)
translate!(cl, 0, 0, 1000)
fig

Moll projection

julia
fig = Figure(; size=(1200,600))
ax = GeoAxis(fig[1,1]; dest = "+proj=moll")
surface!(ax, nlon, lat, ndata; colormap = :seaborn_icefire_gradient, shading=false)
cl=lines!(ax, GeoMakie.coastlines(), color = :white, linewidth=0.85)
translate!(cl, 0, 0, 1000)
fig

3D sphere plot

julia
using Bonito, WGLMakie
Page(exportable=true, offline=true)

WGLMakie.activate!()
Makie.inline!(true) # Make sure to inline plots into Documenter output!

ds = replace(ndata, missing =>NaN)
sphere = uv_normal_mesh(Tesselation(Sphere(Point3f(0), 1), 128))

fig = Figure(backgroundcolor=:grey25, size=(500,500))
ax = LScene(fig[1,1], show_axis=false)
mesh!(ax, sphere; color = ds'[end:-1:1,:], shading=false,
    colormap = :seaborn_icefire_gradient)
zoom!(ax.scene, cameracontrols(ax.scene), 0.5)
rotate!(ax.scene, 2.5)
fig
